SVL500 - CONTINUOUS NUT ROASTER

  • User-friendly
  • Superior performance
  • High energy efficiency
  • Accessible design for maintenance and cleaning
  • Simple cleaning process (belt washing and dry brushing)
  • Low thermal loss and minimal operating expenses
  • Built-in cooling system
  • Optimized design

Capacity/hr

1000-2000 lbs/hr

Consumption

~800.000 BTU

Dimensions

26'x12'x12'

Power

Single Phase, 110-220-230V, 20A, 50-60Hz 40 Amps

Heating

Propane, Natural Gas 1/2'' NPT BTU Gas Supply Pressures min5'' - max7''

Space Requirement

Blueprint for layout

Data Logging

Fan Speed, Conveyor Speed, Damper settings/Airflow, Product bed depth

Connection

Compatibility with third party Software

  • Salted Sunflower Seeds 300-450 kg/hour 660-990 lbs
  • Salted Peanuts 485-650 kg/hour 1070-1430 lbs
  • Peanut in Shell 225-300 kg/hour 495-660 lbs
  • Salted Chickpeas 485-650 kg/hour 650-485 lbs
  • Almonds 485-650 kg/hour 1070-1430 lbs
  • Hazelnuts 565-750 kg/hour 1240-1650 lbs
  • Pumpkin Seeds 300-400 kg/hour 660-880 lbs
  • Pistachio 485-650 kg/hour 1070-1430 lbs
  • Total Electric Power 13,5 kW
  • Maximum Thermal Power 160 kW
  • Average Gas Consumption 9-18 Nm³/h
  • Average LPG Consumption 7-15 kg/h
  • Average Diesel Consumption 9-13,4 lt/h
  • Heat Insulation
    The heat in combustion chamber is very well circulated and during roasting this heat is used for this reason the heat in the hood is always less than the heat in the burner.
  • Adjustable Humidity Decrease
    Each chamber has humidity decreasing adjustments, humidity can be decreased in desired amount from desired chambers.
  • Belt Cleaning
    Constant cleaning of the belt for the new product is done by this function.
  • Product Thickness Adjustment
    by means of adjustment arm and window you can adjust the thickness of the product on the belt.
  • Washing
    Before each product roasting, hygienic cleaning is done by mobile cleaning option.
  • Product Discharge System
    The damage of the roasted product is minimized with this special design and also the dust is sleved.
  • Heat Circulation System
    %90 efficiency is provided with the special design of combustion system.
  • Special Designed Reductor
    Usage without problem by means of steel gears.

Technology at Your Fingertips
Nuts Roasting Machines operation is quite easy with friendly touch screen panels. End of the day production and operator reporting can be added in software optionally. Maintenance is more easy with online connection to PLC.

Optional Solutions
All software programs are written bu Sevval Makine engineers. According to special needs of the customers, additionals can be done.

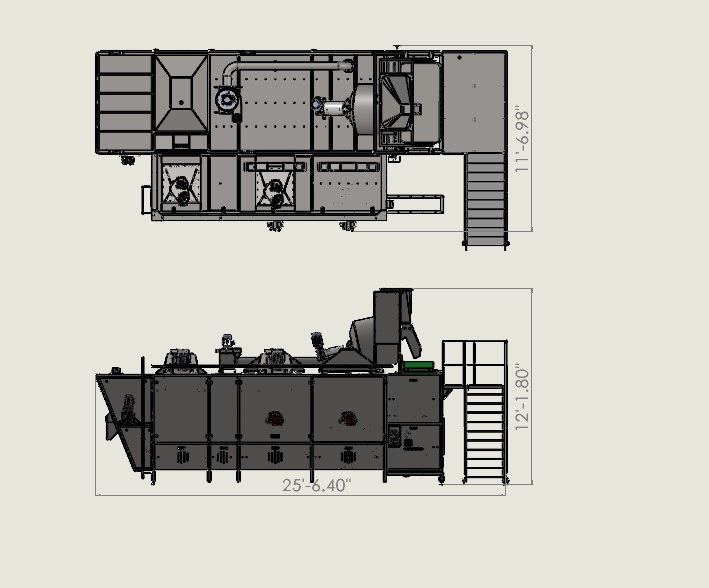

Dimentions

Processable Products
Gallery
